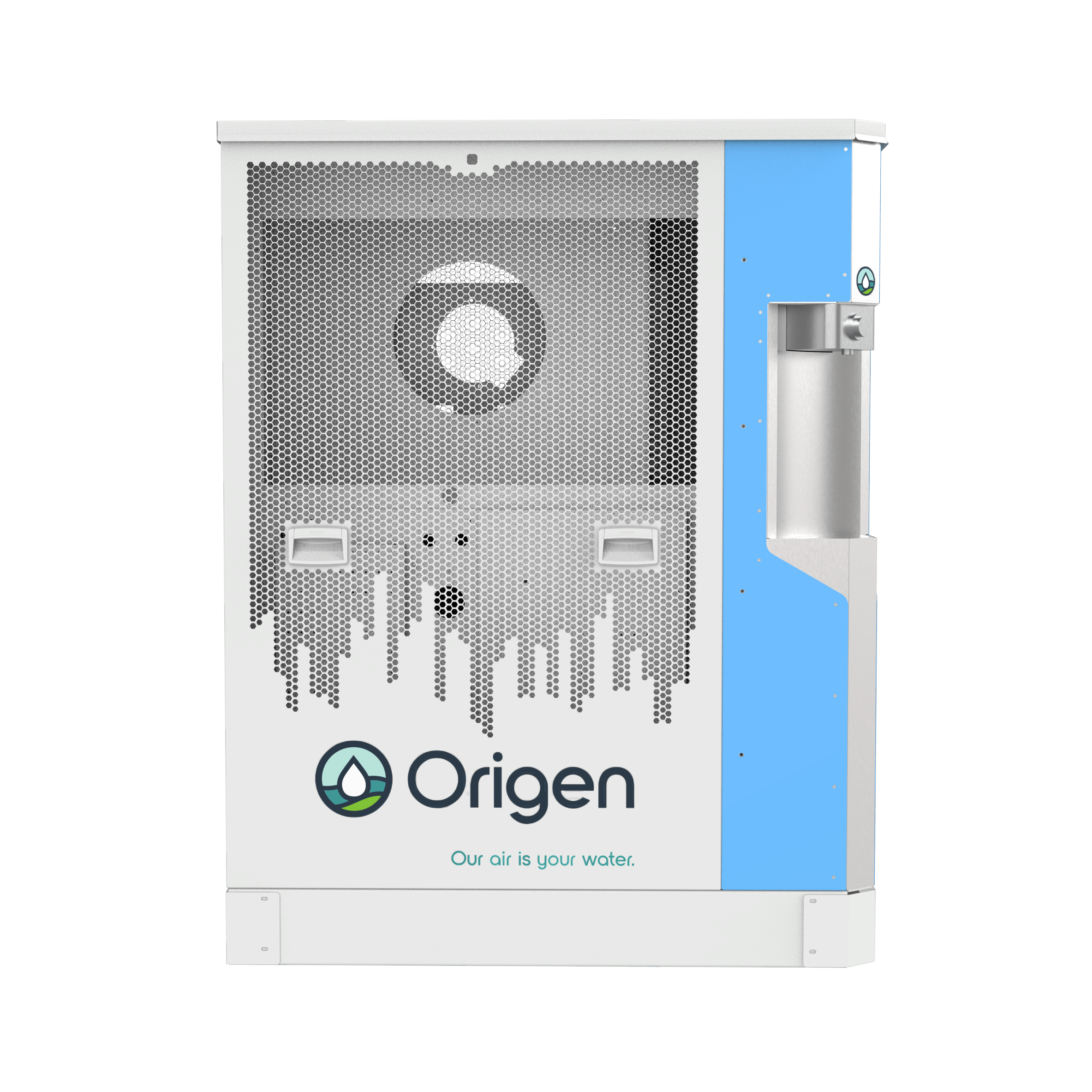

Wellspring 100
Atmospheric Water Generator
The Origen Wellspring™ 100 Atmospheric Water Generator turns ambient air into 103 gallons of pristine, mineral-balanced drinking water per day—without drilling wells, trucking bottles, or worrying about drought.
- Water Production: 103 Gallons/Day*
- Efficiency: 3.5 Liters/kWh
- Supply Voltage: 230V
- Storage: 50 Gallon Storage tank
- Water Quality: 60-70 TDS
Features
Pure Water
4-stage filtration plus UV-C sterilization for contaminant-free water, exceeding WHO and EPA water quality standards.
Energy Efficiency
M-CORR™ thermal recycling generates water as low as 0.25 kWh per liter — up to 50% more efficient than legacy AWGs. Standard single-phase power means no special electrical infrastructure, helping to keep operating costs well below most bottled water contracts.
Ease of Use
No waving in front of a sensor. No waiting for it to work. No wasted water. Unlike IR sensors that misfire or miss entirely, the Wellspring dispenses at the push of a button, giving you precise, reliable control every time.
Safety & Performance
Certification to UL979 and UL60335-2-40 safety standards (pending), and NSF 61, delivering clean drinking water you can trust. Coated steel exterior resists salt spray and corrosion in harsh climates.
Sustainability
Eliminate single-use plastic bottles and diesel delivery trucks from your water supply chain. Low GWP refrigerant and high-efficiency tech helps to reduce CO₂ emissions and minimize climate impact.
Water on Demand
Generate up to 144 gallons of drinking water per day from ambient air. No wells, no trucking, no municipal connection required. A 50-gallon onboard storage vessel and built-in booster pump deliver pressurized water to taps, ice machines, or irrigation lines.
How It Works
- Pull & Filter.
A fan draws air into the machine and through the first stage of filtration, capturing dirt, pollen, mold, smoke, bacteria, and more. - Extract & Condense.
- High-efficiency patented coil design pulls moisture as low as 15% relative humidity.
- Purify.
3-stage microfiltration helps to eliminate sediment, followed by germicidal UV-C sterilization for bacteria & viruses. - Balance & Polish.
High-quality Pentair remineralization cartridge restores a neutral pH for premium taste. - Store & Deliver.
50-gallon food-safe storage vessel and onboard booster pump push water up to bottles, taps, ice machines, or irrigation lines.
Built For the Long Haul
- Coated condensation module and marine-grade painted steel exterior helps resist corrosion from the elements.
- Electrical mechanical control system for simplicity and reliability.
- Future-proof design ready for solar, battery, or grey-water loop integrations.
Specifications
*Final performance specifications are subject to engineering validation and testing and may vary from the values shown. Please note that all atmospheric water generator performance varies by external operating conditions (temperature and relative humidity). The performance conditions shown are based on 80°F, 60% RH conditions.
Performance
Output
103 gal / day
389 L / day
Efficiency
0.92 gal / kWh
3.5 L / kWh
Power
230 V, 60 Hz, single-phase
4650W
Size
48″ L × 41″ W × 62″ H
650 lbs
AIR Filter
MERV-13
18″ x 20″ x 2″
Current Draw
22.5 amps
Operating Range
56 °F Min –110 °F Max
BTU
68,026
Water
PH
7.5-8.5
Filtration Level
4-stage
Mineralization
Pentair 7cm
Tank Capacity
50 Gallons
The Origen Impact
- Slash operating costs by up to 70% versus bottled water.
- Demonstrate ESG leadership by removing diesel trucks and plastic waste from your supply chain.
- Earn resilience points with investors, regulators, and travelers who value water security.
- Install in a single afternoon and produce safe, great-tasting water that same day.
